6 Map Module

The Map module enables visualization and exploration of 2D diffraction data collected on a spatial grid. This is useful for experiments where samples are scanned in a grid pattern (e.g., X-Y mapping) and you want to explore how diffraction patterns vary across the sample.

_images/map_view.png

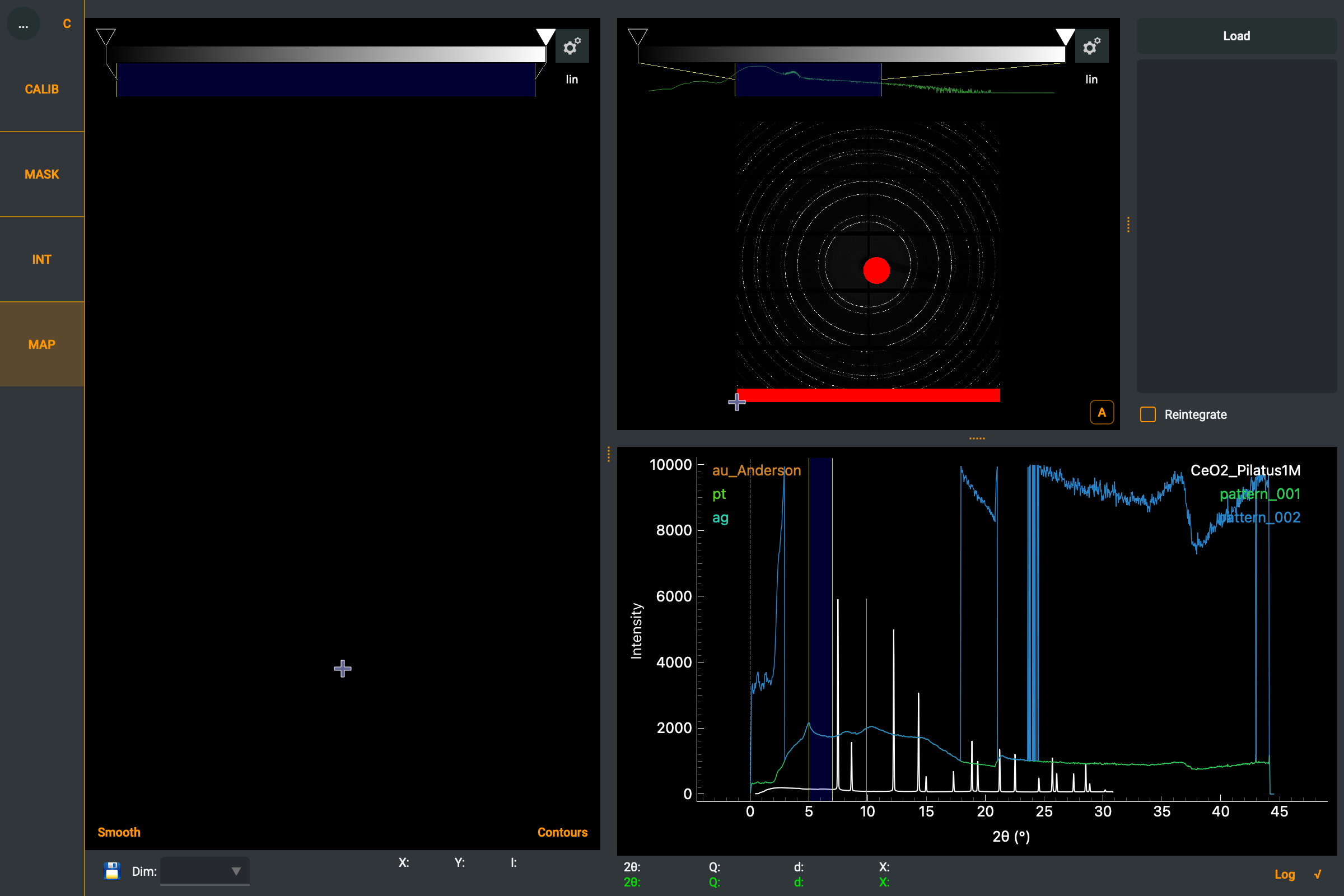

Fig. 21 The Map module of Dioptas.

6.1 Overview

The Map module has a four-panel layout:

  • Map image (left): Shows a 2D map where each pixel represents an integrated diffraction pattern. The pixel value is derived from a selected feature of the pattern (e.g., intensity in a region of interest).

  • Image view and control panel (upper right): the raw diffraction image of the currently selected map position, beside two tabs — Points, for loading the images and arranging them on the grid, and Layers, for what each point measures. When the panel is too narrow for both, the image moves into the tabs (leftmost) instead of squeezing the tables.

  • Pattern plot (lower right): Shows the integrated pattern for the currently selected map position.

6.2 Loading Map Data

To create a map, you need a set of integrated diffraction patterns arranged on a grid. The Map module can integrate multiple image files and arrange them based on their positions.

The map dimensions are calculated automatically from the number of files and the expected grid size.

A map can also be built while it is still being measured — see Live maps.

6.3 Visualization Options

Several options are available to enhance the map visualization:

  • Smooth: Apply smoothing to the map image for better visualization. The slider controls the smoothing level, which is automatically adjusted based on zoom level.

  • Contours: Overlay contour lines on the map image using cubic interpolation. The slider controls the number of contour levels.

  • AutoScale: Automatically adjust the image intensity range.

  • Layer: Select which of the map’s layers is drawn (see Windows and layers).

  • Live: Keep appending the scan’s images as the beamline writes them (see Live maps).

  • Grid…: Opens the layout dialog — grid size, serpentine scans, mirroring and the dropped-frame repair (see Arranging the points).

6.4 Interacting with the Map

  • Left click on the map image to select a position. The corresponding diffraction image and integrated pattern are displayed in the other panels.

  • The pattern plot supports Log and Sqrt scaling buttons for the y-axis.

  • A region of interest (ROI) can be selected on the pattern to define which feature is used to generate the map image values.

6.5 Windows and layers

Each window of the pattern produces one layer of the map, and the Windows table in the Layers tab decides what that window is reduced to:

  • Sum, Sum − bkg, Mean, Max — the raw counts in the window. A plain sum also tracks how much sample the beam went through, so it often maps thickness as much as phase.

  • Peak area — the same, after subtracting the straight line joining the window edges. Use this when the background varies across the scan.

  • Peak pos. — the intensity-weighted centre of the peak. Mapped over a scan this is a d-spacing map, and therefore a strain map.

  • Peak FWHM — the full width at half maximum, which tracks grain size and mosaicity.

None of these fit a peak: area integrates the background-subtracted profile, position is its intensity-weighted centre, and the FWHM interpolates the half-maximum crossings. The ? button beside each table opens the exact definitions.

Overlays enter through expressions: ovl(overlay, window) is the overlay put through a window — interpolated onto the map’s axis and reduced with that window’s range, value kind and background setting — so A - ovl(bkg_empty) maps the difference to a reference pattern (with one window in the expression the window argument can be left out). Overlay names that are not plain words go in quotes: ovl('my background', A). A window the overlay does not cover reads blank rather than an extrapolated value.

Add a second window with the + button beside the table; every window is drawn in the pattern plot in its own colour and can be dragged there. That colour is shown as a swatch in the row — click it to pick another — and the row, its “show” marker and the region under the mouse all use it, so it is always clear which region belongs to which window. Computed layers, added with the + beside their table, combine the windows by name — A/B for a phase fraction, (A-B)/(A+B) for a contrast that survives changes in illumination. Only arithmetic on the layer names, numbers, the functions abs, sqrt, log, log10, exp, clip, minimum and maximum, and the ovl() overlay reference are allowed.

The two tables share the tab through a splitter and each scrolls inside its own half, so adding a window never pushes the computed layers out of reach. Drag the divider to give one of them more room.

Only one layer is drawn at a time. Which one is chosen by the radio button in the leftmost column of either table, next to the window it belongs to; the Layer box below the map does the same and is what to use when the map panel is undocked or shown in the integration view. A newly added window or computed layer is shown straight away.

6.6 Arranging the points

The list in the Points tab has one row per grid cell, not per file, so a gap in the scan is visible. Rows can be dragged to rearrange the map, and the icon buttons beside the list — also available by right-clicking a row — act on the selected cell. Hover any of them for what it does:

  • Move up / Move down (arrows) — moves the selected cell one place along the scan order, for finer control than dragging. Works on blanks as well as on points.

  • Insert blank cell (dashed cell with a plus) — for a frame the beamline dropped. Without it every point after the gap sits one cell too early, which produces a plausible-looking but wrong map.

  • Remove blank cell (dashed cell with a minus) — only for blanks with points after them: the grid keeps its cell count, so a trailing blank belongs to the grid size and is dropped by shrinking the grid instead.

  • Leave point out / Put it back (cell struck through / ticked) — for a saturated frame or a beam dump. The point’s cell closes up in the map (the freed cell joins the blanks at the end), while its row in the list stays where it was, struck through; putting it back restores its place. Clicking a blank cell in the map selects its row in the list, where the blank actions live.

Buttons that cannot apply to the selected cell fade out.

The Grid… button below the map opens the layout options: a quick pick of the grids that fit the loaded points exactly, the number of rows and columns (any grid with room for every point, not only exact factorizations of the point count), Serpentine (snake) scan for scans where every other row ran in the opposite direction, swapping the fast and slow axis, and mirroring. Check filename numbering looks for numbers missing from the file names and inserts a blank for each one, which repairs a dropped frame in a single click.

Blank cells are drawn transparent and are left out of the colour scale.

6.7 Live maps

The Live button beside Load grows the map while the beamline is still writing it. The folder of the loaded files is watched — by listing it about once a second, which unlike file-system events also works on the network storage beamlines use — and every new image is integrated and appended as soon as it is fully written. The grid keeps its number of columns and gains rows as the scan progresses; blanks, rearrangements and excluded points survive; the newest point is selected as it arrives, so the pattern plot always shows the latest frame.

The intended workflow: load the first image (or images) of the scan as a map, then switch Live on. Numbered files written between the two — the scan does not wait — are picked up automatically.

Which files count as part of the scan is decided by their name: a new file must share the loaded files’ name up to the running number (loading scan_001.tif admits scan_002.tif and scan_020.tif), so a calibration image or another scan writing into the same folder is left alone, whatever its extension and numbering. Catch-up additionally requires the number to continue past the highest one loaded.

The grid is not guessed from the files — set the scan’s width (or its full size) in Grid…, at any point before or during the scan. The grid then keeps its number of columns and gains rows as points arrive; a grid set to the full scan size fills in cell by cell. Until a width is set, the map grows with the columns the initial load happened to have — nothing is lost, and the points rearrange the moment the real width is entered.

A file that cannot be read is skipped with a log entry rather than ending the session. Loading a different map or switching the configuration turns Live off.

6.8 Reintegration

The Reintegrate checkbox allows re-running the integration for all map positions when integration parameters change (e.g., unit, number of bins, mask). This is useful for exploring how different integration settings affect the map.

6.9 Project Persistence

The Map module state is saved in Dioptas project files (.dio), so maps can be restored when reopening a project.
